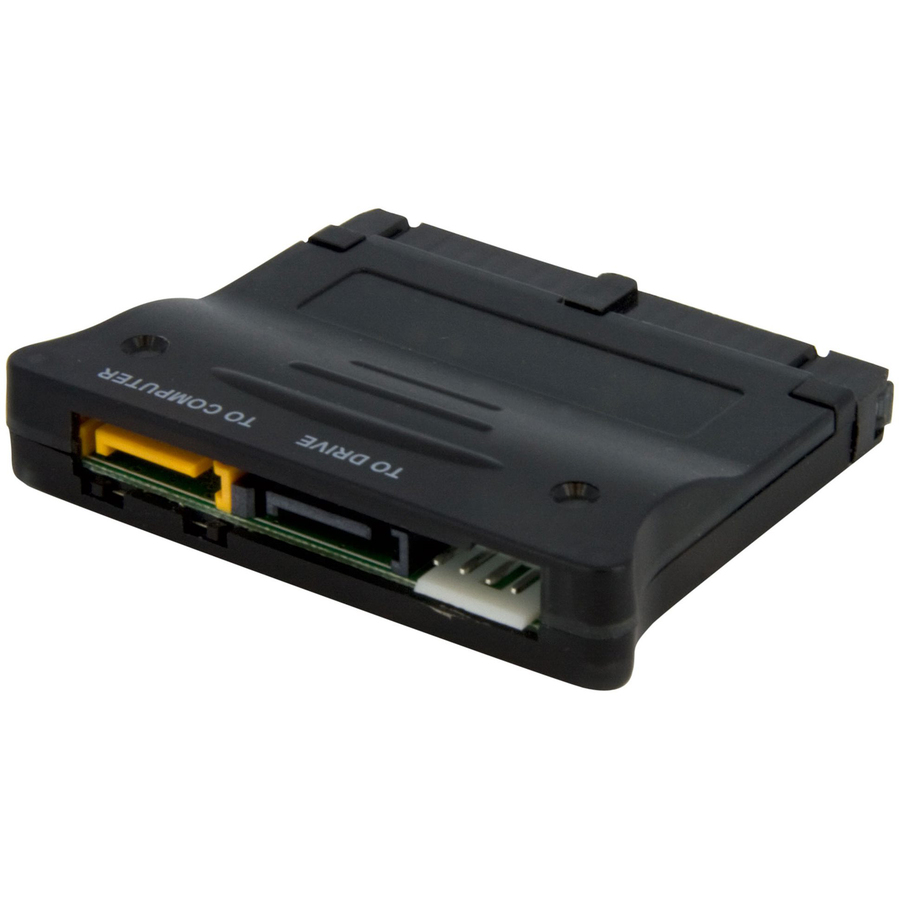

    StarTech.com Bi-Directional SATA IDE Adapter Converter

    Bi-directional adapter converts IDE to SATA or SATA to IDE - ide to sata converter - sata to ide converter - hard drive adapter - bidirectional ide sata - ide to sata adapter

    Product Code: STCPATA2SATA3
    Product Unit: Each
    Contact customer service to check availability
    • Bi-Directional support for IDE-to-SATA or SATA-to-IDE communication
    • Compatible with PATA (IDE) 100/133 MBps hard devices
    • Compatible with SATA revision 1/2/3 (1.5/3.0/6.0 Gbps) devices
    • Supports SATA/IDE ATAPI devices, such as CD/DVD optical drives
    • Fully compliant with Serial ATA 1.0a specifications, with transfer rates up to 1.5 Gbps
    $38.22 (LIST: $50.99)
    Add to Cart

Product Details

General Information

Manufacturer StarTech.com
Manufacturer Part Number PATA2SATA3
Manufacturer Website Address http://www.startech.com
Brand Name StarTech.com
Product Name Bi-Directional SATA IDE Adapter Converter
Marketing Information The PATA2SATA3 is a bi-directional SATA IDE adapter/converter that lets you connect a Serial ATA drive to a legacy IDE port, or an IDE drive to a SATA motherboard port.

A cost-effective solution for upgrading existing IDE systems to support SATA hard drives or optical drives, the SATA/IDE adapter eliminates the expense of having to purchase a controller card while saving the expansion slot that would be required for card installation.

In addition to SATA hard drive installation, the adapter can be reversed in order to connect older IDE drives to a newer SATA-enabled motherboard, making it easy to retrieve old files from a previous system.

More from the Manufacturer

More from the Manufacturer
Packaged Quantity 1 Each
Product Type IDE to SATA Adapter

Physical Characteristics

Color Family Black
Product Color Black
Product Material Plastic
Height 0.4"
Width 2"
Length 2.4"
Weight (Approximate) 0.71 oz

Miscellaneous

Package Contents
  • Bi-Directional SATA IDE Converter
  • SP4 to Dual LP4 Y
  • Power Adapter
  • SATA Cable Instruction Manua
Additional Information
  • Warranty: 2 Years
  • Connector Type(s):
    • 1 - IDE (40 Pin, EIDE/PATA)
    • 2 - SATA (7 pin, Data)
    • 1 - SP4 (4 pin, Small Drive Power)
  • Operating Temperature: 0°C to 70°C (32°F to 158°F)
  • Storage Temperature: -40°C to 150°C (-40°F to 302°F)
  • Humidity: 90% RH
  • Number of Drives: 1
  • Drive Size: 2.5in & 3.5in
  • Compatible Drive Types: SATA & IDE
  • Chipset ID: SunplusIT - SPIF223A
  • Type and Rate: SATA I (1.5 Gbps)
  • Hardware Raid Supported: No
Certifications & Standards
  • CE
  • FCC
Country of Origin China
TAA Compliant Yes
Environmentally Friendly Yes

Warranty

Limited Warranty 2 Year
