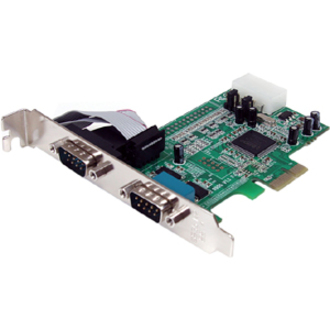

StarTech.com 2 Port PCIe Serial Adapter Card with 16550

Name: StarTech.com 2 Port PCIe Serial Adapter Card with 16550
Brand: StarTech.com
SKU: STCPEX2S553
Price: 65.23 USD
Availability: OutOfStock

Half-height/Low-profile Plug-in Card - 16550 UART - PCI Express x1 - PC, Mac, Linux - 2 x Number of Serial Ports External - 1

Product Code: STCPEX2S553

Product Unit: Each

StarTech.com

Contact customer service to check availability

Two high speed RS232 serial ports with support for data transfer rates up to 460.8 Kbps
Compliant with PCI Express base specifications revision 1.0a
Includes half-height/low profile mounting bracket
Selectable power output on pin 9 for the serial port
128-byte deep FIFO per transmitter and receiver

$65.23 ~~(LIST: $74.99)~~

Add to Cart

Product Details

General Information

Manufacturer	StarTech.com
Manufacturer Part Number	PEX2S553
Manufacturer Website Address	http://www.startech.com
Brand Name	StarTech.com
Product Model	PEX2S553
Product Name	2 Port PCIe Serial Adapter Card with 16550
Marketing Information	The PEX2S553 PCI Express serial card lets you turn a PCI Express slot into 2 RS232 (DB9) serial ports. Based on a native single chip design (no bridge chip), this 2-port serial adapter card allows you to harness the full capability offered by PCI Express (PCIe), and reducing the load applied to the CPU by as much as 48% over conventional serial cards. The RS232 Serial Adapter Card (PEX2S553) is compatible with a broad range of operating systems including Windows® and Linux Kernel 2.6.11 to 4.11.x, and MAC OS 10.4 and above. Plus, the serial card includes an optional half-height/low profile bracket that allows the card to be installed in any PCI Express slot, regardless of the size of the computer case. This product is a replacement for our PEX2S552 card. Backed by a StarTech.com 2-year warranty and free lifetime technical support. More from the Manufacturer More from the Manufacturer
Packaged Quantity	1
Product Type	Serial Adapter

Technical Information

Host Interface	PCI Express x1
Data Transfer Rate	460.8kB/s
UART Type	16550
Platform Supported	PC Mac Linux

Interfaces/Ports

Number of Serial Ports (External)	2

Physical Characteristics

Form Factor	Plug-in Card
Card Height	Half-height/Low-profile
Height	0.8"
Width	4.7"
Length	4.1"
Weight (Approximate)	2.20 oz

Miscellaneous

Package Contents	2 Port PCIe Serial Adapter Card with 16550 Low Profile Brackets Driver CD Instruction Manual
Additional Information	Native single-chip, single lane PCI Express chipset delivers true PCIe performance. Standard and low profile/half-height bracket included to ensure fitment in any system. Easy to install and use with full step-by-step instructions saving time and hassle. OS Compatibility: Windows® DOS, 95, 98SE, 2000, CE 5.0/6.0, Embedded System 2009, POS Ready 2009, XP Embedded, XP, Vista, 7, 8, 8.1, 10 Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016, 2019 Mac OS X® 10.4 to 10.10 Linux kernel 2.6.x to 4.11.x LTS Versions only
Environmentally Friendly	Yes
Country of Origin	Taiwan
